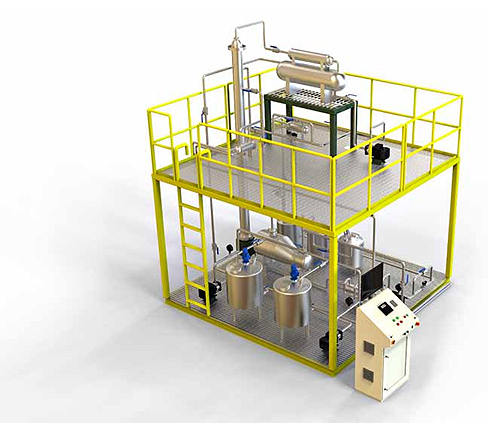

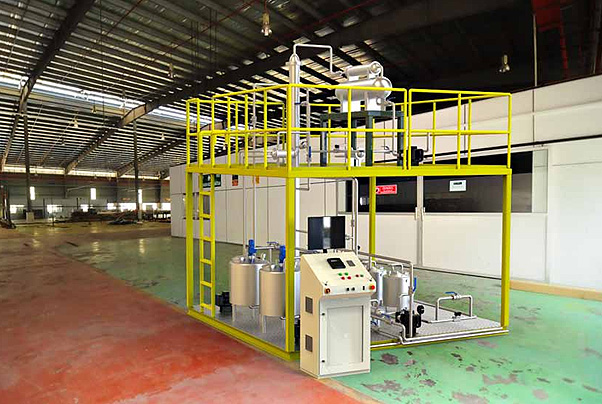

Fully Instrumented Controlled Distillation Column General Description

The most important process in Downstream Oil and Gas technology is the process of separating crude oil into various oil products. The Fully Instrumented Controlled Distillation Column (Model DC-201) is just the right tool for studying this process.

The DC-201 Fully Instrumented Controlled Distillation Column is now integrated with a control system (SCADA, PLC or DCS) instead of a hard-wired control system. With the integrated control system, users are able to perform research and study the control of the distillation column. This can have hundreds of different control structures and strategy combinations that only a soft-wired DCS makes feasible.

The DC-201 is a fully integrated controlled Distillation Column supplied by one company–Intelitek. This ensures the proper integrated function of a complex system, backed by Intelitek’s vast engineering knowhow.

The Fully Instrumented Controlled Distillation Column is comprised of the following major component modules:

  • Distillation Column
  • Main Feed Tank
  • Standby Feed Tank
  • Top Product Tank
  • Bottom Product Tank
  • Off-Spec Product Tank
  • Overhead Accumulator
  • Reboiler
  • Condenser
  • Feed Preheater
  • Top Product Cooler
  • Bottom Product Cooler
  • Platform
  • Main Feed Pump
  • Feed Transfer Pump
  • Top Product Pump
  • Bottom Product Pump
  • Product Transfer Pump
  • Instrumentation:
    • Level Transmitters, Sight Glasses, Switches
    • Pressure Transmitters, Gauges
    • Temperature Transmitters, Gauges
    • Flow Transmitters, Switches
  • Local Control Panel
  • Control System (optional)
    • SCADA System
    • Programmable Logic Controller (PLC)
    • Distributed Control System (DCS)
